Spares
Use the photo below to locate your part. Move your mouse over the picture and check for the part you need. Click for details.
SMB PRO 50 RANGE
Part Details.
Please call us to place your order on 01277 354 396
Hover your mouse over the
part you need to preview it.
Click to view details.

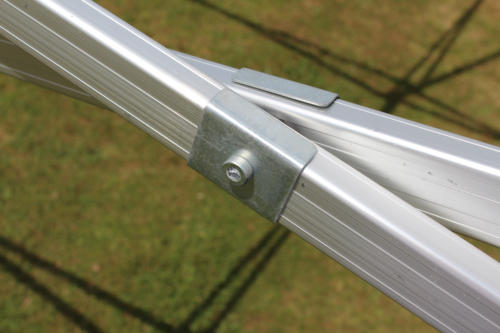

SMBP501
Scissor Bar Clamp Joint (incl. Clamp x 2 ,nut, bolt and
washer)
Fits All SMB Pro 50 Range

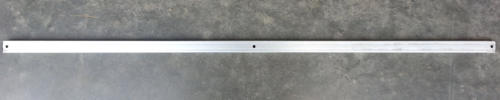

SMBP502, SMBP503, SMBP504, SMBP505
Scissor Bars (pair). Clamp Joint not included.
Please select:
SMBP502 - 2M
Canopies
SMBP503 - 2.5M
SMBP504 - 3M, 4.5M, 6M
SMBP505 - 4M

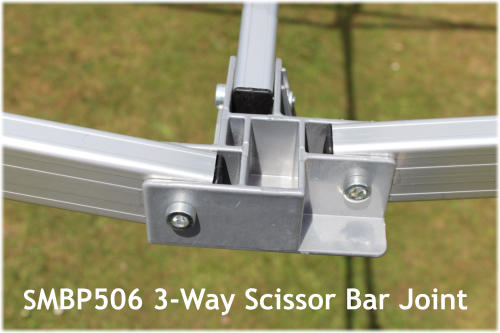

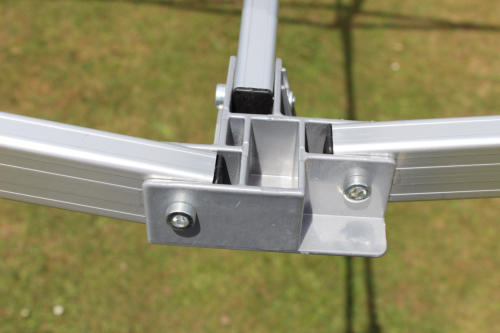

SMBP506
3-Way Scissor Bar Joint (reversible)
Fits all SMB Pro 50 Range

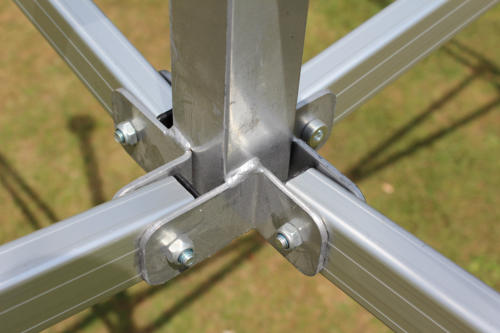

SMBP507, SMBP508
4-Way Fixed Mast Joint with welded mast holder.
Please select:
SMBP507 - incl. 60cm mast holder for 2M, 2.5M, 4M & 4.5M
SMBP508 - incl. 80 cm mast holder3M x 6M only
Scissor Bars & Clamps
Centre Masts & Joints
SMBP509
4-Way Sliding Mast Joint
Fits All SMB Pro 50 Range

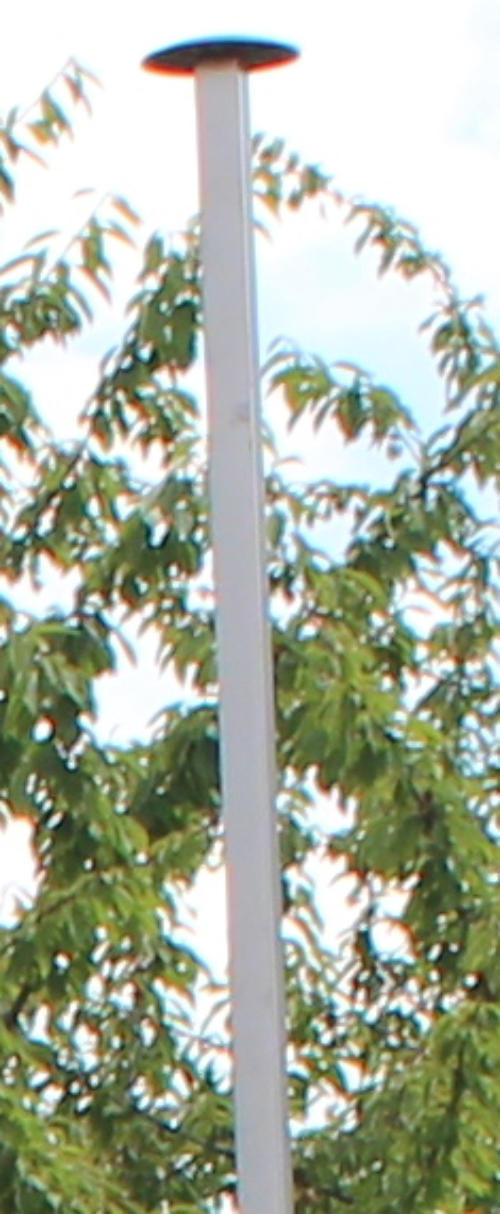

SMBP510, SMBP511, SMBP512, SMBP513
Mast. Mast Cap not included.
Please select:
SMBP510 - 2M
Canopies
SMBP511 - 2.5M
SMBP512- 3M, 4.5M, 6M
SMBP513 - 4M

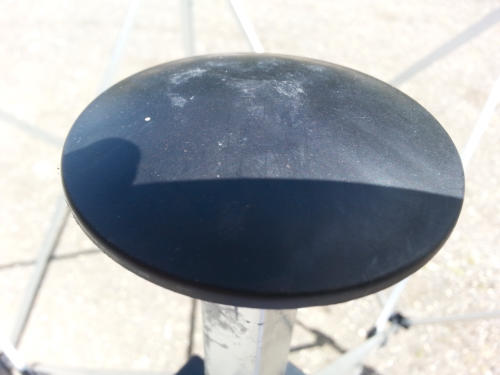

SMBP514
Plastic Mast Cap.
Fits All SMB Pro 50 Range

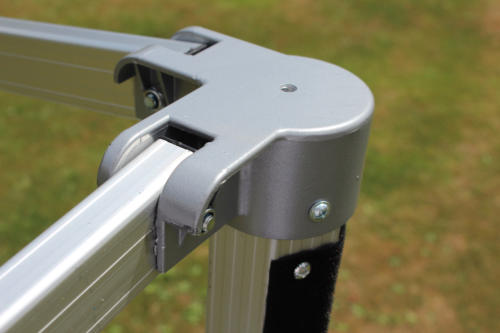

SMBP515
2-Way Corner Leg Top Joint
Fits All SMB Pro 50 Range
SMBP516
2-Way Sliding Corner Leg Joint
Fits All SMB Pro 50 Range

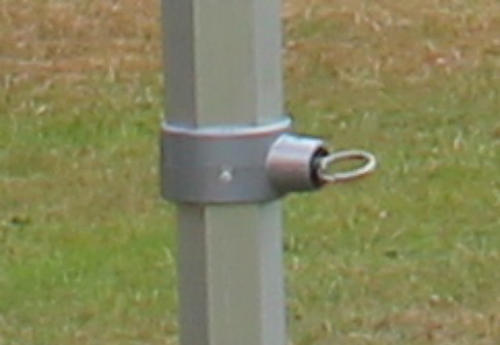

SMBP524
Leg Locking Joint/Knee Joint (includes locking pin)
Fits All SMB Pro 50 Range

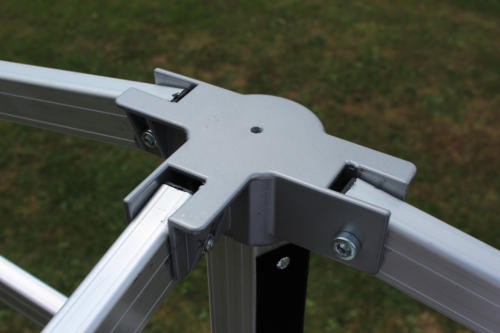

SMBP517
3-Way Middle Leg Top Joint
For 6M canopies only

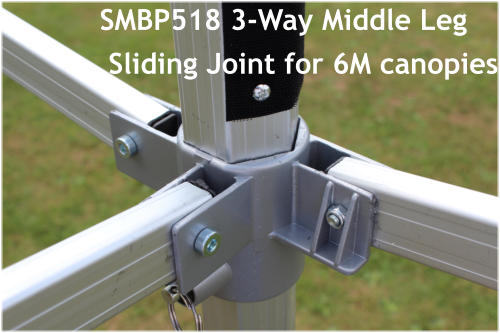

SMBP518
3-Way Middle Leg Sliding Joint for 6M canopies
For 6M canopies only

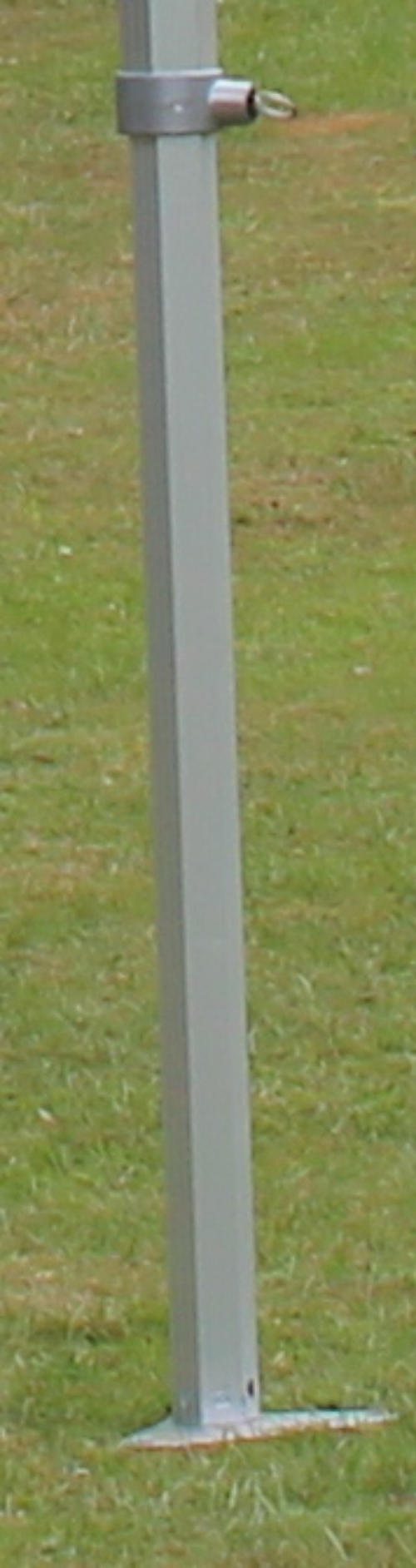

SMBP519, SMBP520
Lower Leg (this is the inside section, including footplate)
Please select:
SMBP519 - 115cm long for 2M, 2.5M, 4.5M & 6M
SMBP520 - 65cm long for 4M only

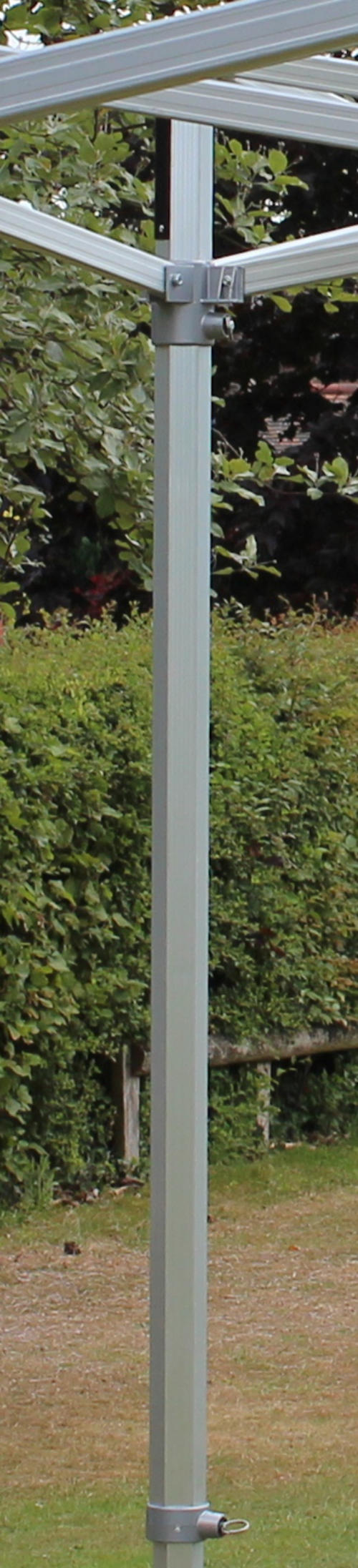

SMBP521, SMBP522
Upper Leg (supplied with all required joints- SMBP515,
SMBP516 & SMBP524 and fitted with velcro pad)
Please select:
SMBP521 - 151cm long for 2M, 2.5M, 4.5M & 6M
SMBP522 - 201.5 cm long for 4M only

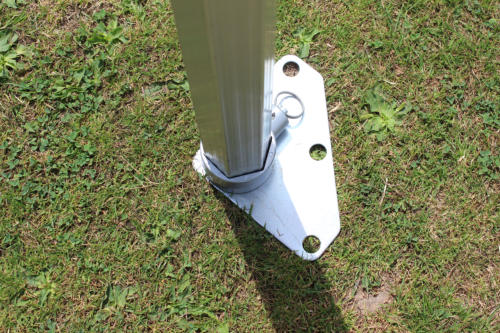

SMBP523
Footplate
Fits All SMB Pro 50 Range
Legs & Leg Joints
Most SMB Pro 50 parts fit any size canopy. However some 4M and 6M canopy parts are slightly different. For parts for Hex canopies please phone us.
Sundries

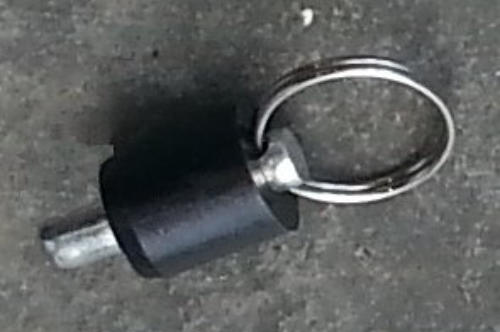

SMBP525
Ring Pull Locking Pin
SMBP526
Countersunk Screws (for attaching footplate to lower leg)
Fits All SMB Pro 50 Range
SMBP527
50mm Nylock Nut & Bolt (for scissor clamp joint)
SMBP528
35mm Nylock Nut & Bolt (for all joints except scissor clamp
joint)
SMBP501 Scissor Bar Clamp Joint
SMBP502/503/504/505
Scissor Bars (pair)

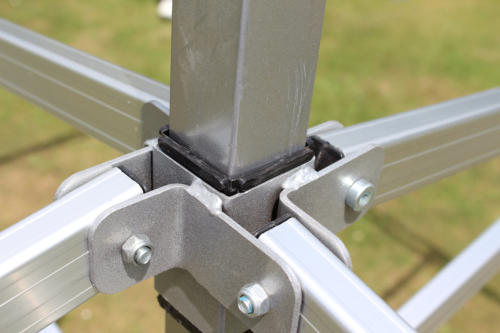

SMBP507, SMBP508
4-Way Fixed Mast Joint

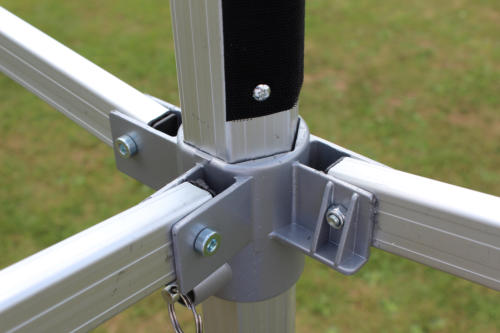

SMBP509 4-Way Sliding Mast Joint
SMBP515 2-Way
Corner Leg Top Joint

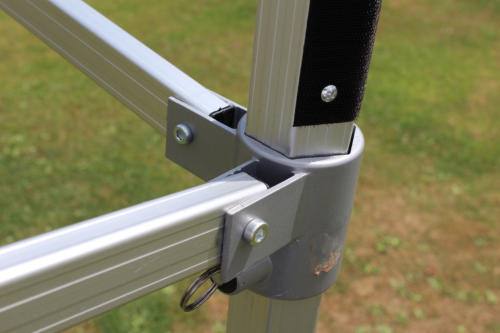

SMBP516 2-Way
Corner Leg Sliding Joint
SMBP517 3-Way
Middle Leg Top Joint
SMBP519, SMBP520
Lower Leg (inside leg
including footplate)
SMBP523 Universal Footplate
SMBP524 Leg Locking Joint
