Spares
SMB PRO 40 RANGE
Part Details.
Please call us to place your order on 01277 354 396
Hover your mouse over the
part you need to preview it.
Click to view details.
SMBP401

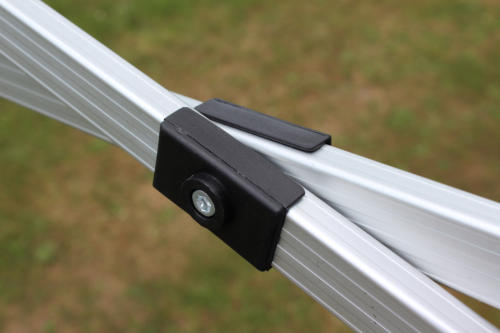

Scissor Bar Clamp Joint (incl. Clamp x 2 ,nut, bolt and
washer)
Fits All SMB Pro 40 Range
SMBP402, SMBP403, SMBP404, SMBP405
Scissor Bars (pair). Clamp Joint not included.
Please select:
SMBP402 - 2M
Canopies
SMBP403 - 2.5M
SMBP404 - 3M, 4.5M, 6M
SMBP405 - 4M
SMBP406
3-Way Scissor Bar Joint (reversible)
Fits all SMB Pro 40 Range
SMBP407, SMBP408
4-Way Fixed Mast Joint with welded mast holder.
Please select:
SMBP407 - incl. 60cm mast holder for 2M, 2.5M, 4M & 4.5M
SMBP408 - incl 80 cm mast holder3M x 6M only
Scissor Bars & Clamps
Centre Masts & Joints

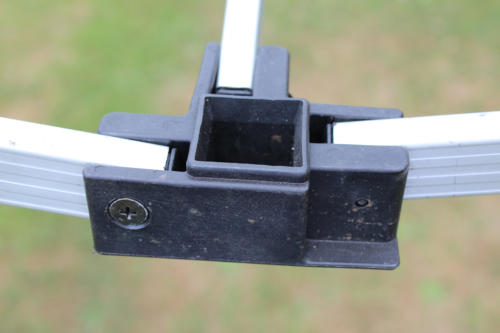

SMBP409

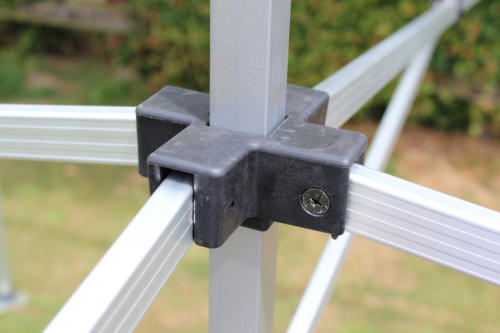

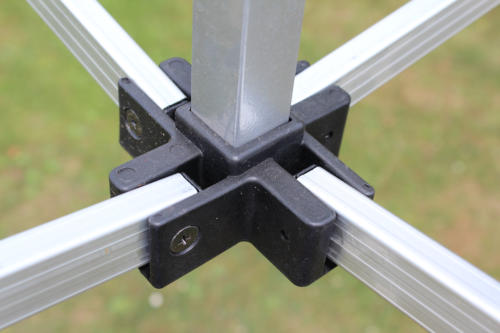

4-Way Sliding Mast Joint
Fits All SMB Pro 40 Range
SMBP410, SMBP411, SMBP412, SMBP413
Mast. Mast Cap not included.
Please select:
SMBP410 - 2M
Canopies
SMBP411 - 2.5M
SMBP412- 3M, 4.5M, 6M
SMBP413 - 4M
SMBP414

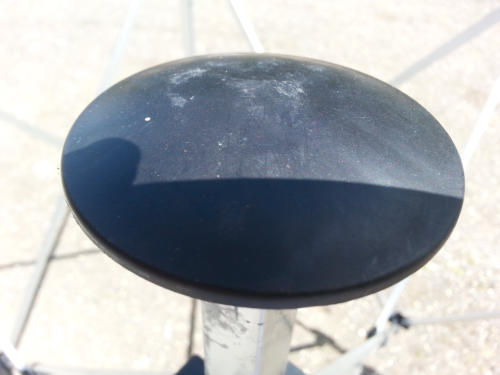

Plastic Mast Cap.
Fits All SMB Pro 40 Range
SMBP415

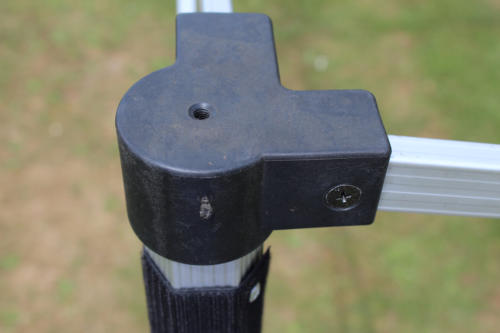

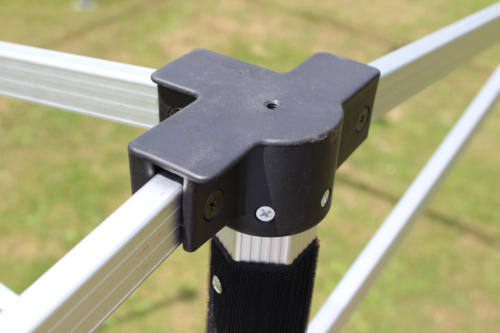

2-Way Corner Leg Top Joint
Fits All SMB Pro 40 Range

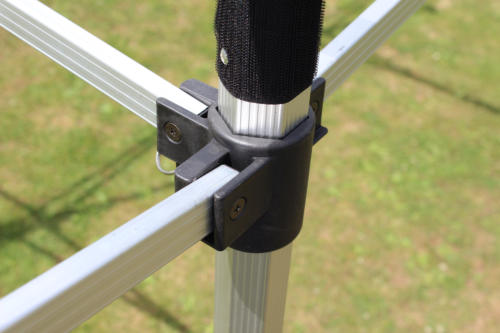

SMBP416

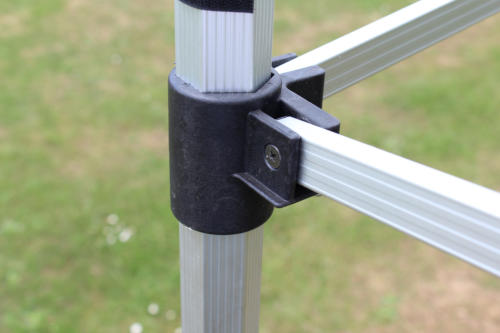

2-Way Sliding Corner Leg Joint
Fits All SMB Pro 40 Range
SMBP424

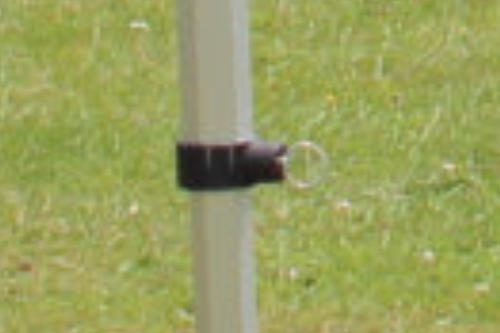

Leg Locking Joint/Knee Joint (includes locking pin)
Fits All SMB Pro 40 Range
SMBP417
3-Way Middle Leg Top Joint
For 6M canopies only
SMBP418
3-Way Middle Leg Sliding Joint for 6M canopies
For 6M canopies only
SMBP419, SMBP420

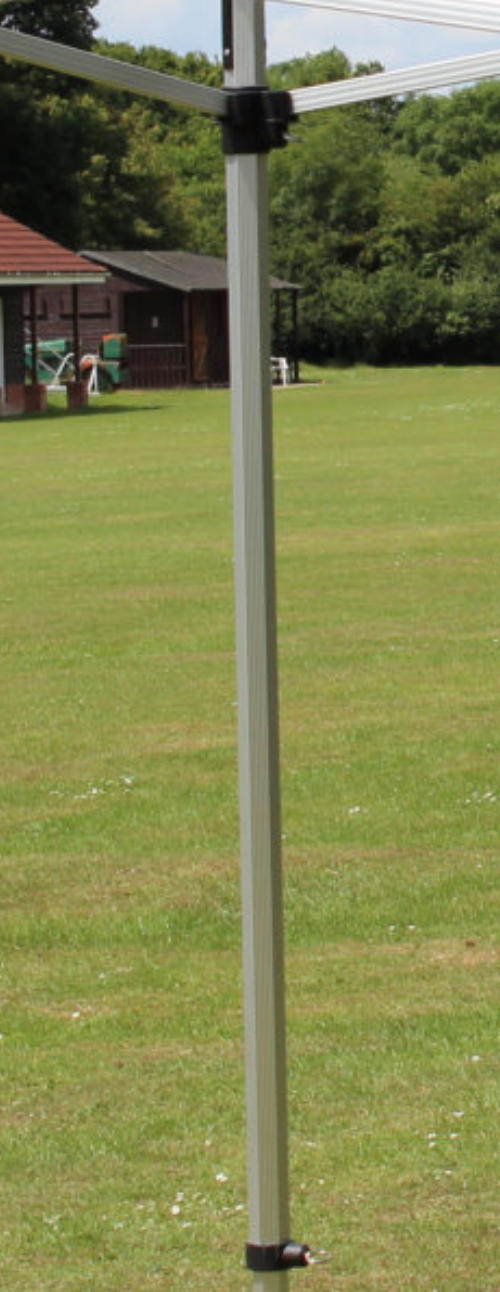

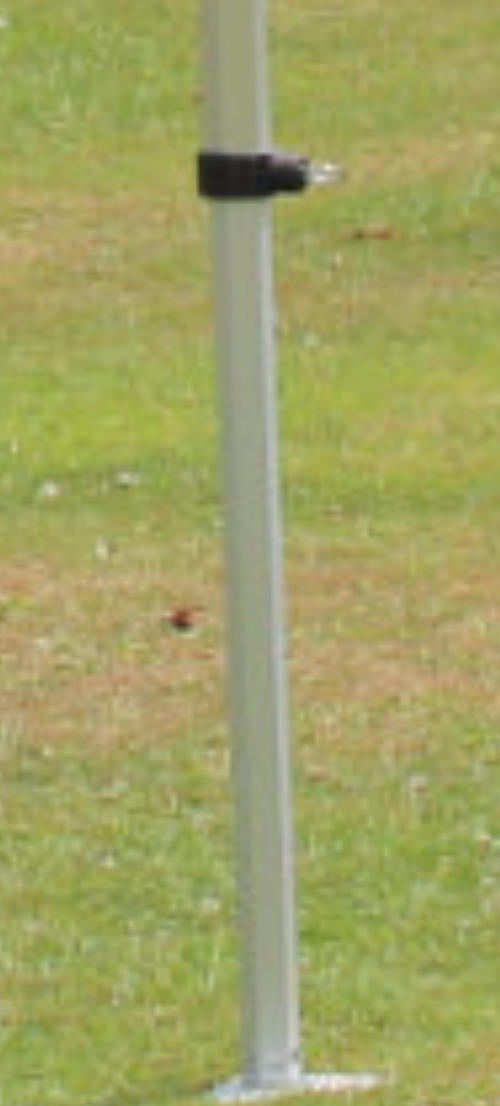

Lower Leg (this is the inside section, including a footplate)
Please select:
SMBP419 - 115cm long for 2M, 2.5M, 4.5M & 6M
SMBP420 - 65cm long for 4M only
SMBP421, SMBP422
Upper Leg (supplied with all required joints- SMBP415,
SMBP416 & SMBP424 and fitted with velcro pad)
Please select:
SMBP421 - 151cm long for 2M, 2.5M, 4.5M & 6M
SMBP422 - 201.5 cm long for 4M only
SMBP423

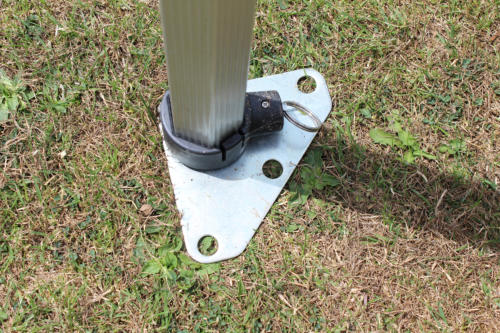

Footplate
Fits All SMB Pro 40 Range
Legs & Leg Joints
Most SMB Pro 40 parts fit any size canopy. However some 4M and 6M canopy parts are slightly different.
Sundries
SMBP425
Ring Pull Locking Pin
SMBP426
Countersunk Screws (for attaching footplate to lower leg)
Fits All SMB Pro 40 Range
SMBP427
50mm Nylock Nut & Bolt (for scissor clamp joint)
SMBP428
35mm Nylock Nut & Bolt (for all joints except scissor clamp
joint)

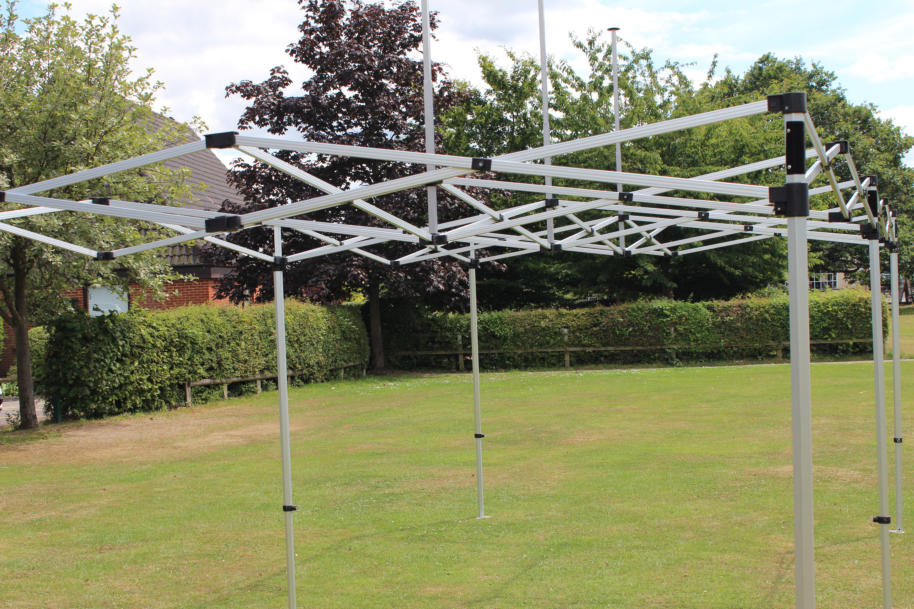

Use the photo below to locate your part. Move your mouse over the picture and check for the part you need. Click for details.
SMBP401 Scissor Bar
Clamp Joint
SMBP402/403/404/405
Scissor Bars (pair)
SMBP406 3-Way Scissor Bar Joint
SMBP407, SMBP408
4-Way Fixed Mast Joint
SMBP409 4-Way Sliding Mast Joint
SMBP415 2-Way
Corner Leg Top Joint
SMBP416 2-Way
Corner Leg Sliding Joint
SMBP417 3-Way
Middle Leg Top Joint
SMBP418 3-Way Middle Leg
Sliding Joint for 6M canopies
SMBP419, SMBP420
Lower Leg (inside leg
including footplate)
SMBP423 Universal Footplate
SMBP424 Leg Locking Joint
